A rheometer is a device that measures the flow properties of a non-Newtonian fluid.
Measurements can be made under a wide range of conditions to evaluate the rheological properties of non-Newtonian fluids. It is used in various fields such as medicine, food, cosmetics, and chemistry.
We offer A&D's RV-10000A tuning-fork vibration rheometer as a rental machine.

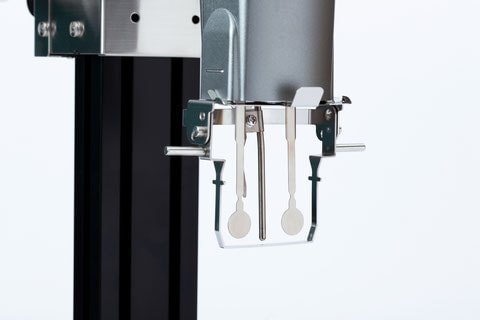

The new measuring method "tuning-fork vibration type" enables highly accurate continuous measurement from low viscosity 0.3 mPa・ s to 5,000 mPa ・s.
RV-10000A
| Measuring method | Tuning fork vibration type / Natural frequency 30Hz | |
| Amplitude range | 0.07 to 1.2mm (at oscillator tip) | |
| Viscosity measurement range | Amplitude (at oscillator tip) | Viscosity range |
| 0.07mm to less than 0.1mm | 2,000～25,000mPa・s | |
| 0.1mm to less than 0.2mm | 20～25,000mPa・s | |
| at 0.2mm | 0.3～25,000mPa・s | |
| Over 0.2 mm to 0.4 mm or less | 0.3～12,000mPa・s | |
| Over 0.4 mm to 0.8 mm or less | 0.3～5,000mPa・s | |
| Over 0.8mm to 1.2mm or less | 0.3～3,000mPa・s | |
| Sample measuring section temperature | 0～160℃ | |
| Operating ambient temperature | 10～40℃ | |
| Sample volume | 10mL or more | |
| Temperature of sample measuring section | 0 to 160°C [per interval of 0.1°C display | |
| Viscosity measurement precision（※1） | Repeatability（※2）：1% （standard deviation） | |
| Accuracy（※3）：±3%（1～1,000mPa・s） at 0.4 mm amplitude setting | ||
| Standard accessories |
Dedicated controller, instruction manual, AC adapter (AX-TB248), AC adapter (AX-TB248), Connection cable (1.5m), Sample container (45mL capacity), Small sample container (10mL capacity), Small sample container lid, Glass container (13mL capacity), Glass container holder, Circulating water jacket, Data communication software (WinCT-Viscosity), RS-232C straight cable, USB serial converter, Weighing unit fixing stand, X-Y-Z stage
|
|
*1. When using a sample container (45mL)
*2. Repeated measurements with the oscillator in the liquid.
*3. the value under temperature range is 20 to 30℃, in a non-condensing environment, and after calibration with the standard liquid for viscometer calibration. If measurement is performed over a long period of time, perform calibration using standard liquid or pure water periodically as necessary.
