Pull-up speed of 1μm/sec type
With a wide range of 1μm/sec to 40mm/sec, this best-selling model can be used for research and semi-production equipment for sample shipment.
| Model | M200 | M300 |
| Material of Main body | Aluminium（A505)、SUS stainless steel（SUS304）、Polypropylene | |
| External Dimensions of Main body | width 300mm depth 300mm height 491～702mm |
width 404mm depth 327mm height 610～902mm |
| External Dimensions of Control box | width 250mm depth 285mm height 167mm | |
| Weight of Main body | 15kg | 18kg |
| Weight of Control box | 5kg | |
| Processing speed | 1μm/sec～40mm/sec（Variable in 1μm/sec increments） | |
| Processing stroke | 200mm | 300mm |
| Max. workpiece weight | 1kg | |
| Machine cover | Option | |
| Number of set points | 10 points | |
| Number of Programs | 8 programs | |
| Operation Monitor | Current Speed、Current Position、Remain Time | |
| Other Functions | Emergency Stop、Partitive / Overall Repeat、Manual mode | |
| Power supply used | 1φAC100V | |
| Amount of electricity consumed | 250VA | |
| Input interfaces | Touch Panel | |
【Field of use】 ※Fields in bold type are those in which the product is used.
| Optical Function | Electronic Function | New Materials | Medical |
| Particle Array（Opal Membrane・Photonic Crystal） | Ferroelectric film | Foamed metal/ Porous metal | Catheters |
| Solar Cell | Insulator layer | Organic / Inorganic Hybrid Materials（Alternating Layering・Alternate Adsorption・Nanosheets） | Pharmaceutical R&D |
| Dye-sensitized solar cell、DSC | Alignment Film | Surface Hardener Coating | DNA chip （Cell culture sheet） |
| LED | Photoresist Materials | CNT | Microfluidic channels |
| Photocatalysts | LCD | Functional Ceramic Materials | Biodevice Reactor |
| Optical Lens | OLED | Non-woven fabrics | etc. |
| Optical Storage Device （CD / HDD） |
Transparent Conductive Film | Prepreg | |
| Anti-Reflection Coating | Fuel Cells | Specialty Films | |
| etc. | Hydrogen Separation Membrane | Heat Transfer Materials / Heat dissipating materials | |

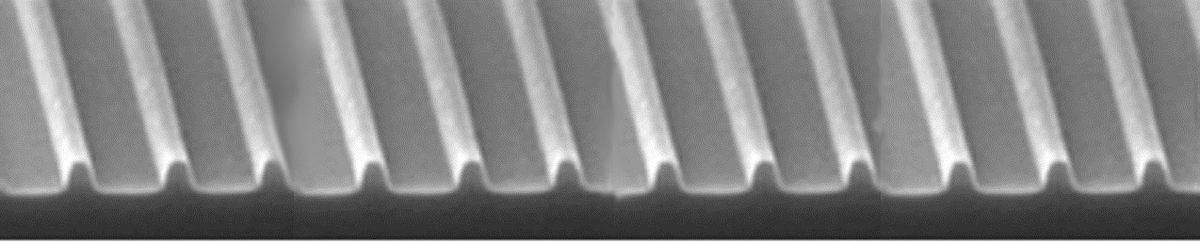

| Nanoimprint Lithography、NIL | Filter Material | ||
| etc. | Beverage Container （PET bottle・Glass bottle） |
||
| Cutting Material | |||
| etc. |
